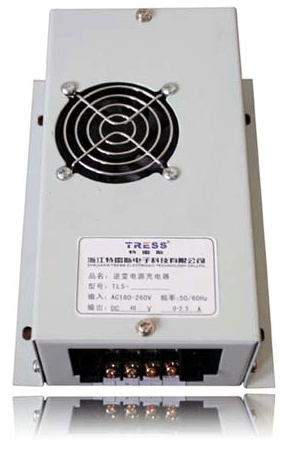

Exterior
Description
TLS-C1.5 is applied to power inverter from 0.5kw to 1.5kw.
TLS-C1.5 charger has intelligent charging management:
Charger CPU is setted standard charging curve of all batteries from 7 Ahs-1000Ah capacity,
and according to different capacity of the battery, charge safely and efficient.
Technique of temperature compensation is adopted, it can control the charging current according to the variety of temperature,
keeping the activity of material in the inner part, ensuring the charging efficiency and prolonging the service life of battery.
The advanced three-stage charge mode, stable current and volage, automatically swith to charge,
maximize the activation of the battery charging time, in the state of full capacity,
CPU takes intermittent charging mode, thus extending battery life.

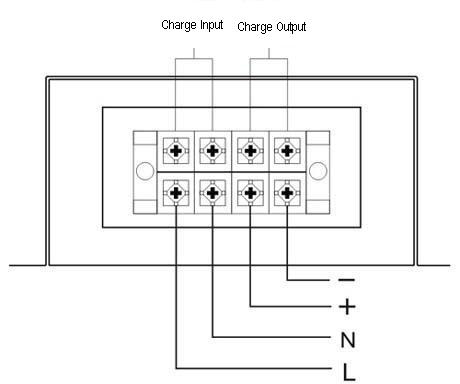

Connection drawing

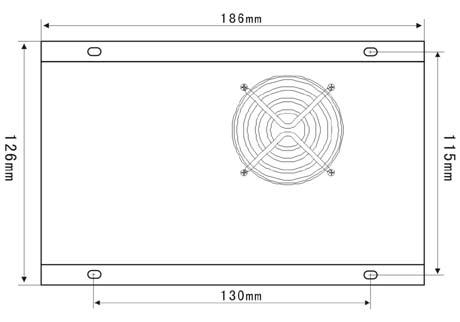

Installation Dimension
Parameter
Model |
TLS-C1.5 |
DC Output Voltage |
12V/24V/48V |
Output Current Range |
0-3A |
Adjustable Range |
±10% |
Output Corresponding Battery Capacity (C=(A)/(Ah)) |
Charging current 0.1C Peak charging current 0.2C |
Input Voltage Range & Frequency |
185~260VAC continuos input;47~63Hz |
Wave Voltage |
≦500mv |
Frequency |
Input 220VAC Full load ≥90% |
High Temperature Protection |
≥85℃ automatically cutoff output |
Static Leakage Discharging Current |
0.25mA |
Temperature Ratio |
±0.03%/℃(0-50℃) |
Cooling Method |
Fan Cooling |
Earthquake Resistance |
10~500Hz.2G 10min,/1 cycle,60 minutes long |
Isolation Withstand voltage |
Input and Output, Input and Cover, Output and Cover 1500V(1min) |
Isolation Resistance |
Input and Output, Input and Cover, Output and Cover 500VDC/100MΩ |
Working Temperature Humidity |
-20℃~+60℃, No dew 20%~95%RH |
LED Status Indication |
Separately indicate stable current, stable current, stable voltage, floating, fault |
Dimension |
126×190×63mm |
Weight |
700g |
Standard |
GB17945-2010 |
Remark: other specification can be made. |
Note1:Charging voltage of every battery is 13.8V
Note2:Above battery is the 12V acid battery.
